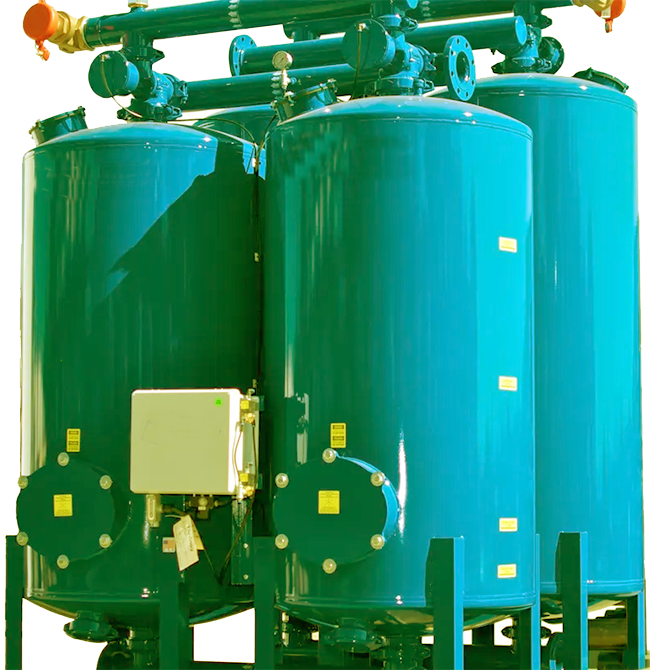

72" Height Multi-Media Filtration Systems

54 Inch Multi Media Filtration System

Filter systems capable of 5 – 40 micron filtration of organic and inorganic solids with flow rates from 10 – 5000 US GPM. Systems are shipped as a complete modular fully assembled skid mounted unit.

Standard Features

  • Fully Assembled and Tested
  • Skid Mounted for easy installation and levelling
  • Backwash Control Panel with LCD display & PD switch
  • 304SS Sight Glass
  • Backwash Valves / Pneumatic or Hydraulic Operation
  • Side-Access Manways
  • UV-Resistant Fuze Coated Exterior
  • Stainless Steel Removable Underdrains
  • Stainless Steel Removable Solenoids
  • Ductile Iron Auto Backwash Valves w/ 304SS Internals
  • Inlet, Outlet & Backwash Manifolds
  • Necessary Victaulic Couplings
  • Electrical Wiring, Stainless Steel Enclosure & Necessary Tubing

Available Options

  • ASME Code Vessels
  • Stainless Steel 304SS or 316SS
  • High Pressure 90+ PSI
  • PLC Integration
  • Electric Valve Operation
  • NEMA 4X Enclosure
  • Custom Piping Design

Applications

  • Mining Industry
  • Pre-Filtration for RO (Reverse Osmosis)
  • Oil & Fracking Water
  • Construction Remediation
  • Stormwater Remediation
  • Municipal Process Water
  • Nurseries & Greenhouses

Advantages

  • Our filtration systems provide exceptional results, rigorously tested and tuned for industrial applications
  • Self cleaning backwash features use water internal to the system
  • Industrial grade stainless steel solenoids versus industry standard plastic solenoids
  • 80 PSI max standard operating capable
  • SS304 backwash control enclosure versus industry standard carbon steel or plastic
  • Fabricated backwash manifolds

72″ Height Vessels – 5 Micron

Model Ft2 Diameter No. Of Tanks Min Flow Rates Max Flow Rates Inlet Discharge Backwash Media (Ft3) Max Pressure
US GPM m3/hr US GPM m3/hr Anthracite Silica Sand Sm Gravel Lg Gravel PSI BAR
M18-72-1A 1.77 18" 9 2.04 26 5.90 3" 3" 3" 3.5 2.4 0.3 0.6 125 8.6
M18-72-2A 3.54 18" 2 18 4.08 53 12.03 3" 3" 3" 7.1 4.7 0.6 1.2 125 8.6
M18-72-3A 5.31 18" 3 26 5.90 79 17.94 3" 3" 3" 10.6 7.1 0.9 1.8 125 8.6
M24-72-1A 3.15 24" 1 15 3.40 47 10.67 3" 3" 3" 6.3 4.2 0.5 1 100 6.9
M24-72-2A 6.3 24" 2 31 7.04 95 21.57 4" 4" 3" 12.6 8.4 1 2.1 100 6.9
M24-72-3A 9.45 24" 3 47 10.67 141 32.02 4" 4" 3" 18.8 12.6 1.6 3.1 3.1 6.9
M24-72-4A 12.6 24" 4 63 14.30 188 42.69 4" 4" 3" 25.1 16.7 2.1 4.2 100 6.9
M30-72-1A 4.91 30" 1 25 5.67 73 16.58 3" 3" 3" 9.8 6.5 0.8 5 100 6.9
M30-72-2A 9.82 30" 2 73 11.12 147 33.38 4" 4" 3" 19.6 13.1 1.6 4.9 100 6.9
M30-72-3A 14.73 30" 3 35 16.58 221 50.19 4" 4" 3" 29.4 19.6 2.5 7.4 100 6.9
M36-72-1A 7.1 36" 1 71 7.94 107 24.30 4" 4" 4" 14.1 9.4 1.2 4.7 80 5.5
M36-72-2A 14.2 36" 2 35 16.12 213 48.37 6" 6" 4" 28.3 18.8 2.4 9.4 80 5.5
M36-72-3A 21.3 36" 3 105 23.84 320 72.68 6" 6" 4" 42.4 28.3 3.5 14.1 80 5.5
M48-72-1A 12.6 48" 1 63 14.30 188 42.69 4" 4" 4" 25.1 16.7 2.1 8.4 80 5.5
M48-72-2A 25.2 48" 2 127 28.84 320 72.68 6" 6" 4" 50.2 33.5 4.2 16.7 80 5.5
M48-72-3A 37.8 48" 3 189 42.92 567 128.77 6" 6" 4" 75.4 50.2 6.3 25.1 80 5.5
M48-72-4A 50.4 48" 4 252 57.23 756 171.70 8" 8" 4" 100.5 67 8.4 33.5 80 5.5
M48-72-5A 63 48" 5 315 71.54 945 214.63 10" 10" 4" 125.6 83.7 10.5 41.9 80 5.5
M48-72-6A 75.6 48" 6 378 85.85 1134 257.55 10" 10" 4" 150.7 100.5 12.6 50.2 80 5.5
M54-72-1A 15.91 54" 1 75 17.03 238 54.05 4" 4" 4" 31.8 21.2 2.6 10.6 80 5.5
M54-72-2A 31.82 54" 2 160 36.34 478 108.56 6" 6" 4" 63.6 42.4 5.3 21.2 80 5.5
M54-72-3A 47.73 54" 3 239 54.28 716 162.62 6" 6" 4" 95.4 63.6 7.9 31.8 80 5.5
M54-72-4A 63.64 54" 4 318 72.22 955 216.90 8" 8" 4" 127.2 84.8 10.6 42.4 80 5.5
M54-72-5A 79.55 54" 5 398 90.39 1195 271.41 10" 10" 4" 159 106 13.2 53 80 5.5
M54-72-6A 95.46 54" 6 485 110.15 1435 325.92 10" 10" 4" 190.8 127.2 15.9 63.6 80 5.5
M54-72-7A 111.37 54" 7 556 126.28 1675 380.43 10" 10" 4" 222.5 148.4 18.5 74.2 80 5.5
M54-72-8A 127.28 54" 8 635 144.22 1915 434.94 10" 10" 4" 254.3 169.6 21.2 84.8 80 5.5

Multimedia Filter Scaling

A comparison of the available filter heights.
Multimedia Filter Scaling 24" Height
Multimedia Filter Scaling 36" Height
Multimedia Filter Scaling 60" and 72" Height
