Moving Bed Biofilm Reactor (MBBR)

Request a Quote Download Brochure Download Technical

The Ecologix MBBR is a highly effective biological treatment process based on a combination of conventional activated sludge process and biofilm media. The MBBR process utilizes floating High Capacity MicroOrganism BioChips media within the aeration and anoxic tanks. The microorganisms consume organic material. The media provides increased surface area for the biological microorganisms to attach and grow. The increased surface area reduces the footprint of the tanks required to treat the wastewater. The treatment process can be aerobic and/or anaerobic and operates at high volume loads.

MBBR Advantages

  • Compact units with small size
  • Increased treatment capacity
  • Complete solids removal
  • Improved settling characteristics
  • Operation at higher suspended biomass
  • Concentrations resulting in long sludge retention times
  • Enhanced process stability
  • Low head loss
  • No filter channeling
  • No need of periodic backwashing
  • Reduced sludge production and no problems with sludge bulking

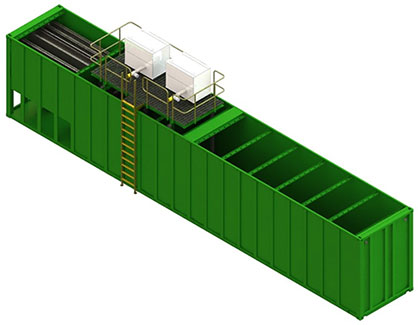

MBBR ISO Containerized Biological Treatment ISO View MBBR ISO Containerized Biological Treatment Side View

Diffusion of O2 into the Cell Cluster

Representation of diffusion of O2 into the cell cluster
The MBBR process utilizes floating plastic carriers (media) within the aeration tank to increase the amount of microorganisms available to treat the wastewater. The microorganisms consume organic material. The media provides increased surface area for the biological microorganisms to attach to and grow in the aeration tanks. The increased surface area reduces the footprint of the tanks required to treat the wastewater. The media is continuously agitated by bubbles from the aeration system that adds oxygen at the bottom of the first compartment of the aeration tank. The microorganisms consume organic material. When compared to conventional secondary treatment it provides superior efficiency and value.

In fact the MBBR media or biochips utilized exclusively by Ecologix have an active surface area > 4000 m2/m3 which is up to six (6) times greater than any competing media available on the market today.

The MBBR is a complete mix, continuous flow through process which is based on the biofilms principle that combines the benefits of both the activated sludge process and conventional fixed film systems without their disadvantages.

MBBR Industries

  • Dairy processing (milk, cheese, yogurt)
  • Beverage factories (breweries, juice, soda)
  • Automotive Industry
  • Metal plating and finishing
  • Municipal sewage plants
  • Chemical industries
  • Pulp & paper
  • Food & beverage
  • Coke & steel plants
  • Aquaculture & Koi ponds
  • Container units on small footprint
MBBR Layout

MBBR Shipping Container Platform

Model Flowrate Skids
GPD GPM m3/day m3/hr ISO 40' ISO 20'
MBBR 040120 - AC 25,000 17 95 3.9 0 1
MBBR 040120 - C 32,000 22 121 5.0 0 1
MBBR 040120 37,500 26 142 5.9 0 1
MBBR 140020 - AC 55,000 38 208 8.7 1 0
MBBR 140020 - C 64,000 44 242 10.1 1 0
MBBR 140020 75,000 52 284 11.8 1 0
MBBR 240120 - AC 128,000 89 484 20.2 2 1
MBBR 540020 - AC 256,000 178 969 40.4 5 0
MBBR 440120 - C 300,000 208 1136 47.3 4 1
MBBR 540120 - AC 320,000 222 1211 50.5 5 1

MBBR BioChip 25

Performance MBBR BioChip 25

The MBBR BioChip 25 is a high performance MBBR carrier that provides a protected active surface area of > 4,000 m2/m3 for the immobilization of microorganisms which are in charge of the different biological water treatment processes. This active surface area has been scientifically certified and compares to a range of 500 m2/m3 - 800 m2/m3 provided by competitive solutions. Its application is characterized by extremely high removal rates and reliable process stability. Our BioChips provide removal rates up to 10 times higher than conventional media carriers (in all their various forms). This is achieved through a high-quality pore system as shown under magnification to the right.

Features & Advantages

  • Protected active surface > 4,000 m2/m3
  • Highest removal rates in the industry
  • Cost savings per m2 of protected active surface area
  • Extremely stable processes (even with fluctuation in process conditions)
  • Manufactured from high quality PE material (virgin) free form carcinogenic plasticizers
  • Optimal pore system and structure
  • Allows for smaller MBBR system volume
  • Simple operation
  • Thin, controlled biofilms
  • Optimal diffusion of 02 and substrate
  • Easy upgrading or retrofitting of existing plants
  • Large diameter (25 mm / 1")
  • Long life abrasion resistant material
  • Self-cleaning
  • Non-clogging
  • Mature 20+ year proven technology

Applications & Industries

  • Denitrification
  • Nitrification
  • COD removal
  • Anaerobic ammonium oxidation (ANAMMOX) process
  • IFAS
  • Pulp & paper industry
  • Food & beverage industry
  • Slaughterhouses
  • Chemical effluent treatment, textile factories
  • Fish-farming, aquaculture, koi carp ponds, swimming ponds

Physical Characteristics MBBR BioChip 25 under magnification

The MBBR BioChip 25 biofilm carrier is completely free from any phthalates or other plasticizers and does not contain bisphenol A or any other aromatic compounds. It is made of virgin polyethylene (no recycled PE), inorganic fillers, tiny amounts of monoester of glyceric acid (made from coconut fat), citric acid and soda (Na2CO3).

The manufacturing process becomes extremely important when used with applications sensitive to additional harmful chemicals such as aquaculture. Bishpenol A and phthalates have bene known to cause cancer and have hormonal effects.

The parabolic shape of the BioChip 25 allows for a homogenous mixing of the Chips in the tank as well as for the active biofilm being optimally kept in the water flow. Hence, the supply of the microorganisms with substrate and oxygen is ensured at any time and at any load condition.

Process

A crucial factor in the Moving Bed Bio Reactor (MBBR) process is the sufficient and frequent contact between the wastewater components and the microorganisms attached to the carrier (biofilm). The necessary mixing of the carrier elements in the reactor (reaction tank) can be achieved using the process air supply required in aerobic treatment processes. In anaerobic treatment processes, the carriers in the reaction tank can be moved properly by pumping water or by using immersed, slowly-rotating mixers.

The characteristics and quality of the biofilm establishing on the carrier surface is not only influenced by shear forces in the tank but also by the composition and the loads of the pollutants in the wastewater (substrate). The more the wastewater is polluted with biodegradable pollutants, the more intense and the faster the growth of biomass.

Problems caused by a decrease in biodegradation efficiency are largely a consequence of an intense thickness of the biofilms, resulting in a reduction of the active carrier surface area. The MBBR BioChip 25 does not have this issue. Its process is very different in that the biofilms, which colonize the pores of the BioChip and which try to grow out of the pores, are kept constantly thin by shear forces. These shear forces evolve on the outsides of the carrier elements due to their movement in the water, and provide the self-cleaning effect of the MBBR BioChip 25. Consequently, the biofilms remain thin as they are protected from the shear forces only inside the pores. Thin biofilms are crucial for an optimal supply of the microorganisms with substrates (removable pollutants and nutrients) as well as with the oxygen required for the aerobic biodegradation processes. In this way, the MBBR BioChip 25 allows for constantly high biological removal rates and reliable process stability.

BioChip comparison

Competitor clogged carrier
Competitor "conventional" clogged carrier
Non clogged BioChip 25
MBBR BioChip 25 – no clogging due to biofilm only being present inside the BioChip pores.

The carrier media has been specifically developed for the biodegradation of carbon and the elimination of nitrogen in industrial as well as in municipal wastewater treatment plants and, due its specific characteristics, can be used equally for aerobic, anaerobic and anoxic processes. The results are extremely high removal rates in denitrification, nitrification and COD elimination process.

MBBR BioChip 25 cross section
Cross section of an MBBR BioChip 25
MBBR BioChip 25 pore system
Pore system of the MBBR BioChip 25, ensuring durably thin biofilms for optimal diffusion of substrate, oxygen and nutrients

ANaerobic AMMonium OXidation Process (ANAMMOX)

The MBBR BioChip 25 provides the most stable and reliable process of any comparable carrier media. To illustrate this, we show below its usage in the ANAMMOX process. This is the process that takes place during the biological treatment of wastewater and sewage, ammonium nitrogen (NH4+) and nitrite (NO2-) are being symproportioned to molecular nitrogen under anoxic conditions.

The surface characteristics of the biofilm carrier must ensure the permanent attached growth of the bacteria. In other words, the biofilm carrier has to provide a porous and micro-rough surface structure which enables the planctomycetes (bacteria) to permanently attach to the carrier surface. Utilizing the MBBR BioChip 25 carrier media planctomycetes can permanently settle in the protected pore structure of thie carrier and are, as a result, prevented from being flushed out of the reaction system.

MBBR BioChip 25 colonized with ANAMMOX bacteria
MBBR BioChip 25 colonized with ANAMMOX bacteria
Active biomass growing in the pore system
Active biomass growing in the pore system

The MBBR BioChip 25 provides for a high space-time-yield by allowing the bacteria to settle in the protected areas of the chip where they can reproduce. This also ensure the substrate can transfer through diffusion into deeper biofilm layers. Due to the material thickness of approx. 1.1 mm of the carrier media, the diffusion depth of approx. 0.5 mm on both sides of the carrier is not being exceeded. This fully meets the requirements of an optimal habitat in the form of a special pore system having a depth of approx. 0.5 mm on or in the MBBR BioChip 25, respectively.

Typical ANAMMOX Application

Municipal or domestic sewage treatment plants operate with a high ammonium nitrogen load (NH4-N) coming from their sludge treatment process. This partial flow is usually re-supplied to the biological main flow process where it causes energy consumption due to the process air flow on the one hand and BOD consumption on the other (carbon source required for the de-nitrification process). Under optimal conditions, it is however possible to treat this filtrate flow by means of ANAMMOX process and hence to relieve the treatment plant energetically and hydraulically.

Example ANAMMOX process flow

Cost Savings

The MBBR BioChip 25 offers a price-to-surface area ratio which is more favorable than many other carrier types. To properly evaluate offers for carrier media you need to compare prices of different media not per m3 but per m2 since each media has a different m2/m3 ratio. The protected active surface area (in 2/m3) and not solely the volume (in m3) of carrier media is what is needed to make an accurate cost comparison.

Energy Savings

The special shape and specific gravity of the colonized MBBR BioChip 25 provide unique motion characteristics which require less agitation energy in the form of process air supply in order to keep the carrier suspended in the wastewater. By using the MBBR BioChip 25 Wastewater treatment operators will benefit from significant savings in operational expenditure.

Longevity / Wear

Each MBBR BioChip 25 media has a very low mass compared to its size. Consequently, the impulse transferred when contact is made with another carrier element is insignificant thus drastically reducing abrasion and wear. Other tubular carrier types (often injection-molded and heavy related to their size) conversely break after a certain time in operation leaving carrier parts on the water surface in the clarifiers of wastewater treatment plants.

Examples of these poorly designed carriers are shown below

Poorly designed MBBR carriers

Real world performance comparisons

The following chart shows the differences in COD degradation achieved by conventional secondary treatment versus MBBR treatment. Figures represented are in KG/M3

COD degradation performance chart

The following chart shows the differences in Nitrification degradation achieved by conventional secondary treatment versus MBBR treatment. Figures represented are in KG/M3

Nitrification degradation performance chart
